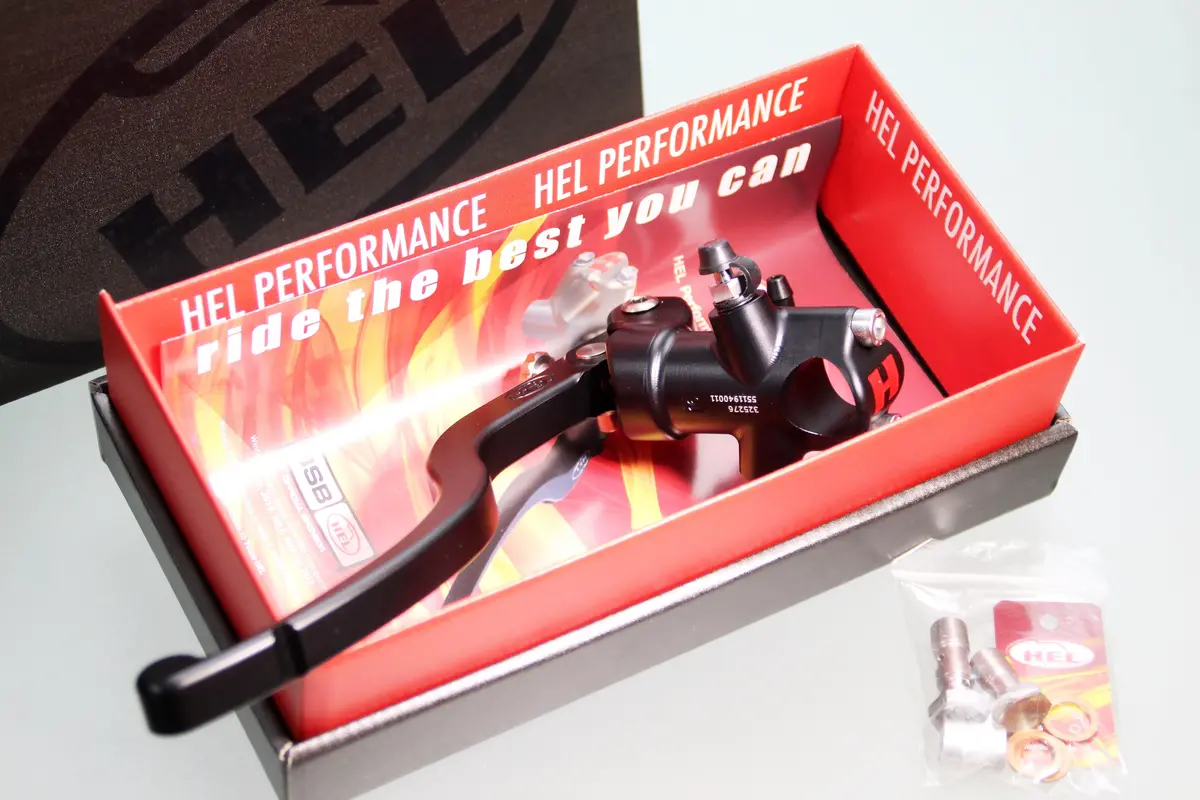

HEL PERFORMANCE ADJUSTABLE MASTER CYLINDER (16MM BLACK)
- Introducing, HEL’s Full CNC Machined Master Cylinder in 16MM with Black body finish.
- 16MM Master Cylinder is designed for bikes with single caliper. This product can be installed interchangeably, either on Left Hand or Right Hand Side.
FEATURES :
- All metal parts of the master cylinder (including levers) are produced in-house on CNC machines from solid billets of 6082-T6 aluminium.
- Each master cylinder body takes an hour of machining time to remove the material to HEL’s exacting standards with the bore measured automatically in cycle.
- Each master cylinder is individually finished and assembled by hand and comes with the latest design of lever which allows three ratios from one lever.
- The lever features a pill shaped hole into which one of two plugs are inserted, One has an offset hole – with the hole nearest the master cylinder you get a -1 ratio.
- If you rotate the plug 180 degrees it offers you a +1 ratio and if you use the plug with a central hole you obtain a 1:1 ratio.
- This means that with a 16mm master cylinder you can obtain a 15/16, 16/16 and 17/16 from one lever and two inserts.
LEVER RATIOS : 16mm – Clutch master cylinders or single front brake (smaller CC models)
*For bike models with two calipers, HEL also offers 19MM Master Cylinder
Kindly chat or message with us for more information.*
