Triple R Rally Build LED Lighting Kit – Model 5

Description

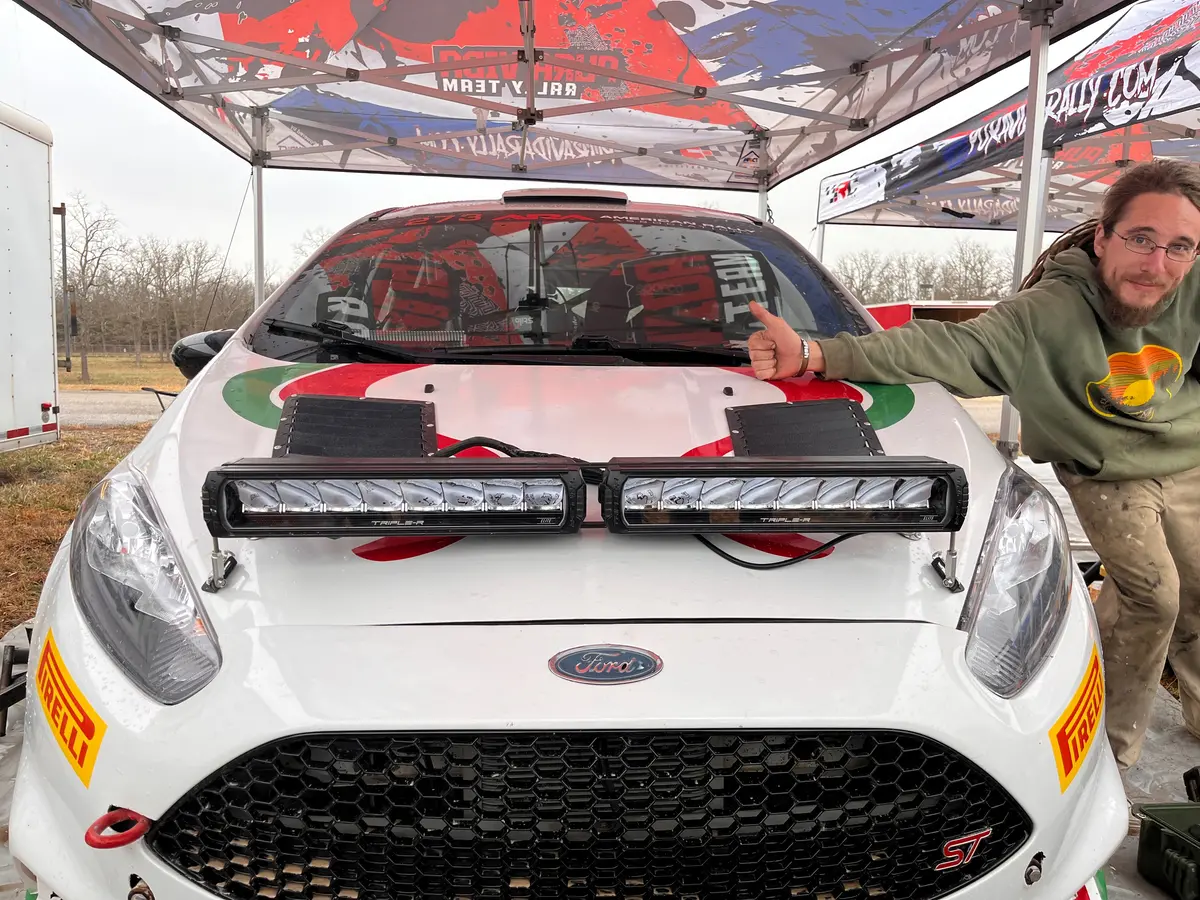

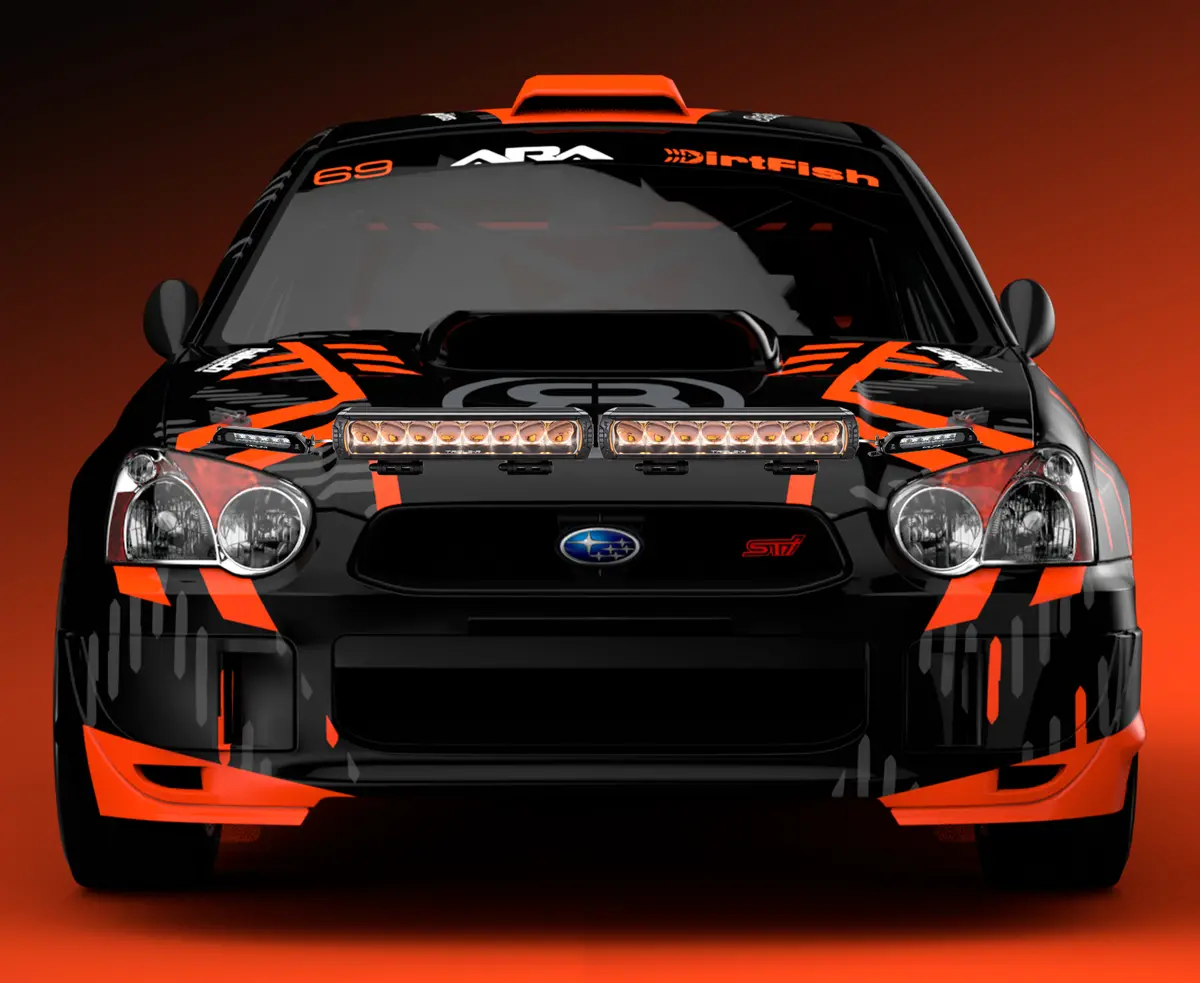

Our best selling kit! An LR-1000 Elite features as the main driving element, while two Linear-6 Elites offer a good mix of flood and throw for the edges of the field of view. Add the optional second LR-1000 Elite now or in the future to pack an even more serious punch.

~18,200 Lumens (x1 LR-1000 Elite)
~28,372 Lumens (x2 LR-1000 Elite)

Two wiring harness options are available: A single “Four Lamp” harness so all lights are operated together, or dual “Two Lamp” harnesses to allow the LR-1000(s) and Linear(s) to be operated independently.

Note: Please inspect the wiring diagrams below to ensure the lengths are adequate for your application. Extension harnesses are available as an accessory if necessary. Linear-6 Elite+ lights must run on a separate harness from the forward lights as they don’t share the same connector.
What’s in the box?

• x1 LR-1000 Elite
• x2 Linear 6 Elite
• x3 Side Mount Kits
• x2 Two Lamp Wiring Kit OR x1 Four Lamp Wiring Kit
  or

• x2 LR-1000 Elite
• x2 Linear 6 Elite
• x1 Boomer Single
• x2 Side Mount Kits
• x2 Two Lamp Wiring Kit OR x1 Four Lamp Wiring Kit
